Let’s face it: stairs are everywhere. And for millions of wheelchair users, a single flight of steps isn’t just an architectural feature. It’s a wall. A barrier that turns a simple trip to a café, a visit to a friend’s second-floor apartment, or an evacuation during a fire drill into a logistical nightmare.
But what if you could defy gravity?
Enter the stair climbing wheelchair. These aren’t your standard mobility aids. We’re talking about a revolutionary shift from “stuck at the bottom” to “access everywhere.” But how do they actually pull off this engineering magic without tipping over? How does a machine safely lift a human being up a 40-degree incline?
In this comprehensive guide, we’re going deep under the hood. You’ll discover how tank-like motorized caterpillar tracks grip the edge of a step with zero slip, and how advanced gyroscopic stabilization keeps you perfectly upright. From the mechanics of “spider mode” wheels to the future of AI-driven robotics, we’re breaking down exactly how this technology is crushing barriers one step at a time.
Ready to see how it works? Let’s dive in.
01. The Engineering Magic Behind the Climb
At its heart, a stair climbing wheelchair is a masterclass in physics manipulation. Standard wheelchairs are designed for horizontal efficiency—rolling forward with minimal friction. A climber, however, must convert that rotational energy into a vertical lifting force, all while battling the constant pull of gravity that wants to tip the device backward.
The Core Concept
The fundamental challenge is shifting the Center of Gravity (CoG). On flat ground, your weight is centered over the wheels. On stairs, that weight shifts dangerously back. To counter this, these machines utilize complex leverage systems. When the device engages “climb mode,” the mechanics physically shift the user’s seat or the track mechanism relative to the base. This allows the chair to leverage torque against the edge of the stair rise without flipping.
The Power Source
Where does the strength come from? These machines rely on high-torque electric motors. Unlike a standard mobility scooter that focuses on speed and range, these motors are geared for raw lifting power. They draw from a substantial lithium-ion battery capacity, typically running on 24V or higher systems (often dual 12V batteries in series). This battery density is crucial; it must sustain the heavy amperage draw required to lift the combined weight of the machine (often 200+ lbs) and the user (up to 250+ lbs) repeatedly against gravity.
The “Brain”
The operation is managed by an advanced microcontroller. It handles the delicate transition from driving to climbing. It monitors current draw to prevent motor stall and coordinates the deployment of the climbing apparatus, ensuring the device doesn’t accidentally switch modes on flat ground.
02. Tank Treads and Caterpillar Tracks: The Grip That Won’t Quit

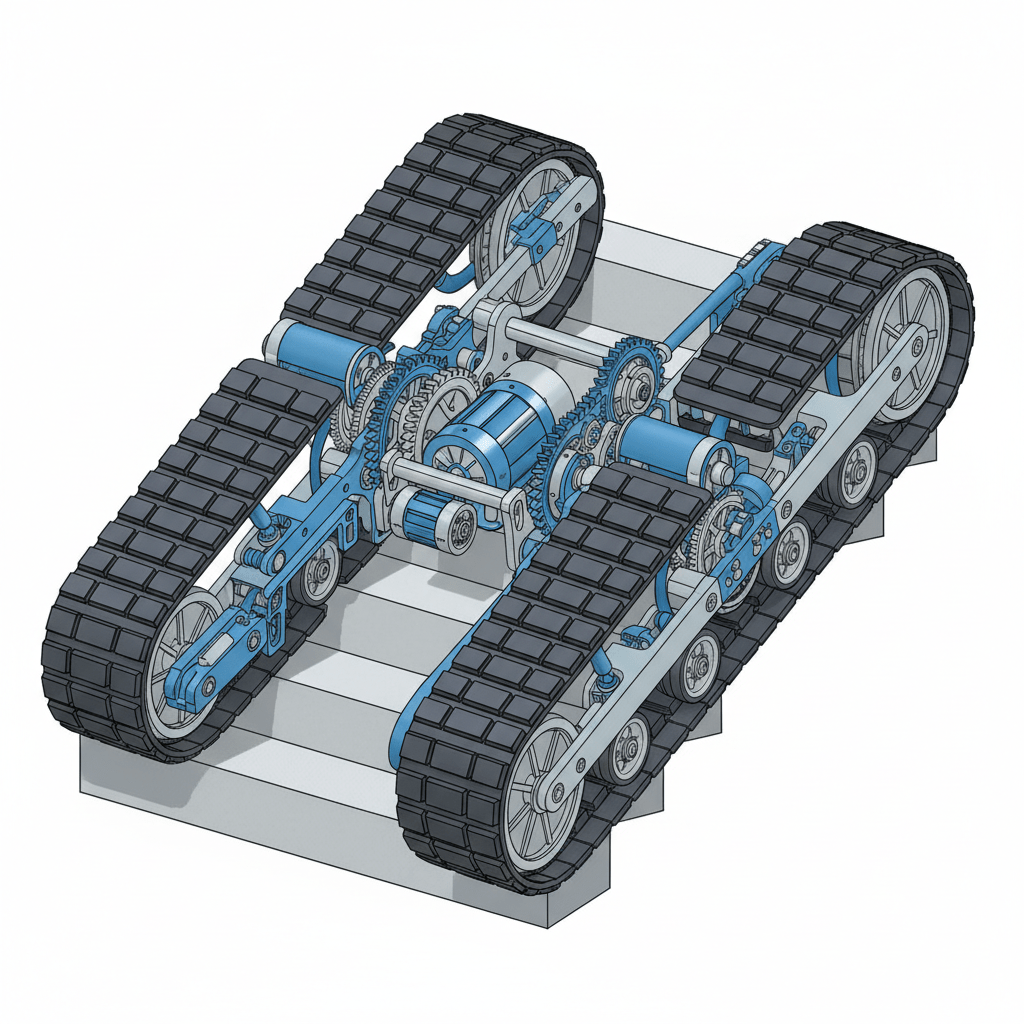

The most common, and arguably the most stable mechanism found in a modern stair climbing wheelchair , is the track-based climbing system. If you have ever seen a military tank or a heavy-duty excavator, you know the principle.
How It Works

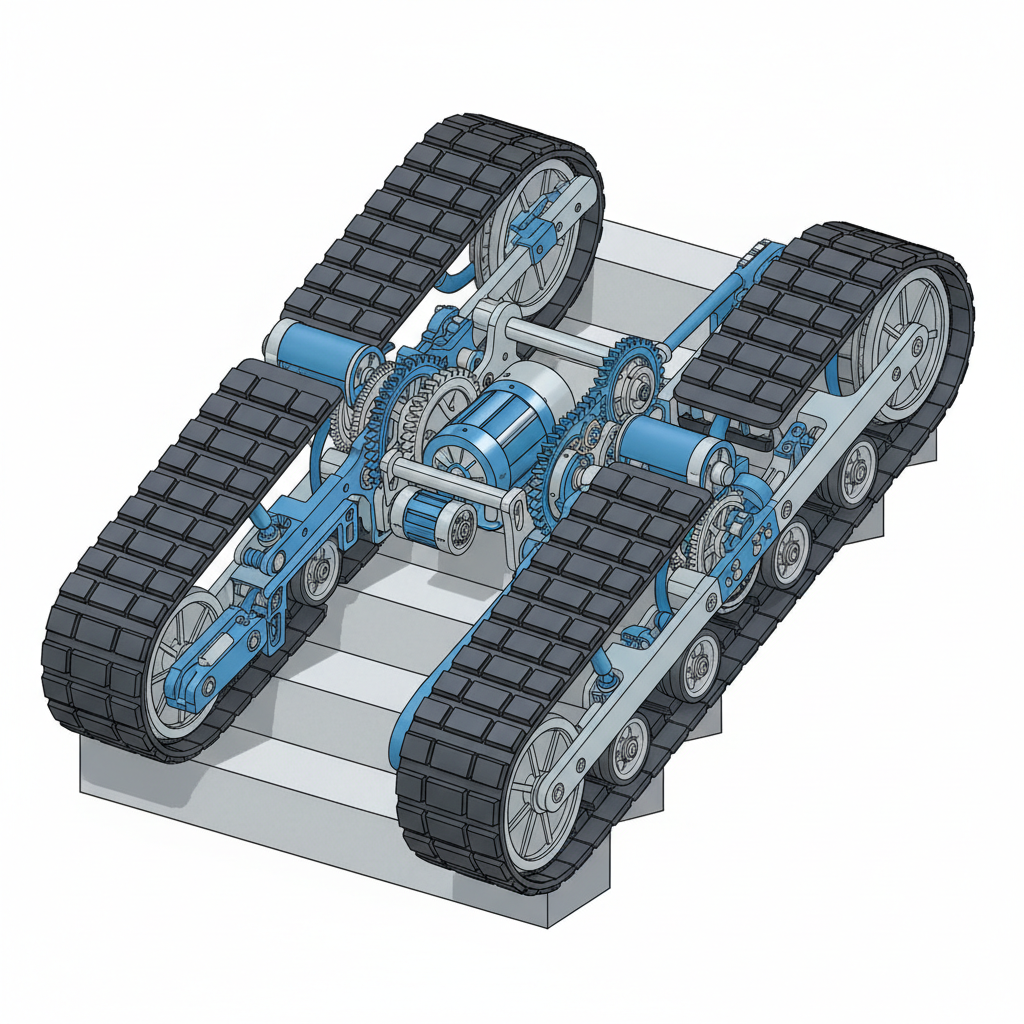

In this design, the wheelchair sits atop a set of motorized caterpillar tracks. When approaching a staircase, the user (or the automated system) lowers these tracks to the ground, lifting the regular road wheels off the floor. The tracks are long enough to bridge the gap between the noses of two or three stairs simultaneously. This is critical because it transforms a jagged staircase into a continuous, albeit steep, inclined plane.
Traction Science
The secret sauce here is friction. The tracks are lined with rubberized grip treads. These treads are chemically engineered to maximize the coefficient of friction against common materials like wood, concrete, marble, and commercial carpet. The massive surface area of the track prevents the slipping that a round tire might experience on a stair edge.
The Stability Advantage
Why choose tracks? Stability. Because the tracks bridge multiple steps, the ride is significantly smoother than wheeled versions. The user feels less “bouncing” as the machine ascends. For straight, long flights of stairs, this is the gold standard of independent vertical mobility, providing a sense of security that other mechanisms struggle to match.
03. Spider Mode: How Rotating “Star Wheels” Walk Up Steps
While tracks glide, “star wheels” literally step. This mechanism, often referred to as a crawler mechanism or “spider mode,” looks exactly like it sounds. It utilizes a cluster of wheels—usually three—arranged in a triangle that rotates around a central axis.
The Mechanism
Imagine a triangle where each point is a small wheel. On flat ground, the bottom two wheels roll along the floor. When the chair backs up to a stair, the entire triangle rotates. The top wheel swings over and lands on the step above, becoming the new bottom wheel. Then the cycle repeats. It is a mesmerizing mechanical “walk.”
The “Crawl” Effect
This motion creates a distinct sensation. Unlike the smooth ascent of a track system, rotating star wheels create a rhythmic, stepping motion. The chair physically lifts, moves forward, and plants itself on the next step.
Best Use Case
This design is frequently seen in a manual wheelchair ascender or portable attachment. Because it doesn’t require the heavy chassis of a track system, it is lighter and more compact. It is often the mechanism of choice for a caregiver assisted climber, where an attendant balances the chair while the motor handles the lifting. It’s a brilliant solution for tight landings where a long track simply wouldn’t fit.
04. Defying Gravity: Gyroscopes and Self-Leveling Sorcery

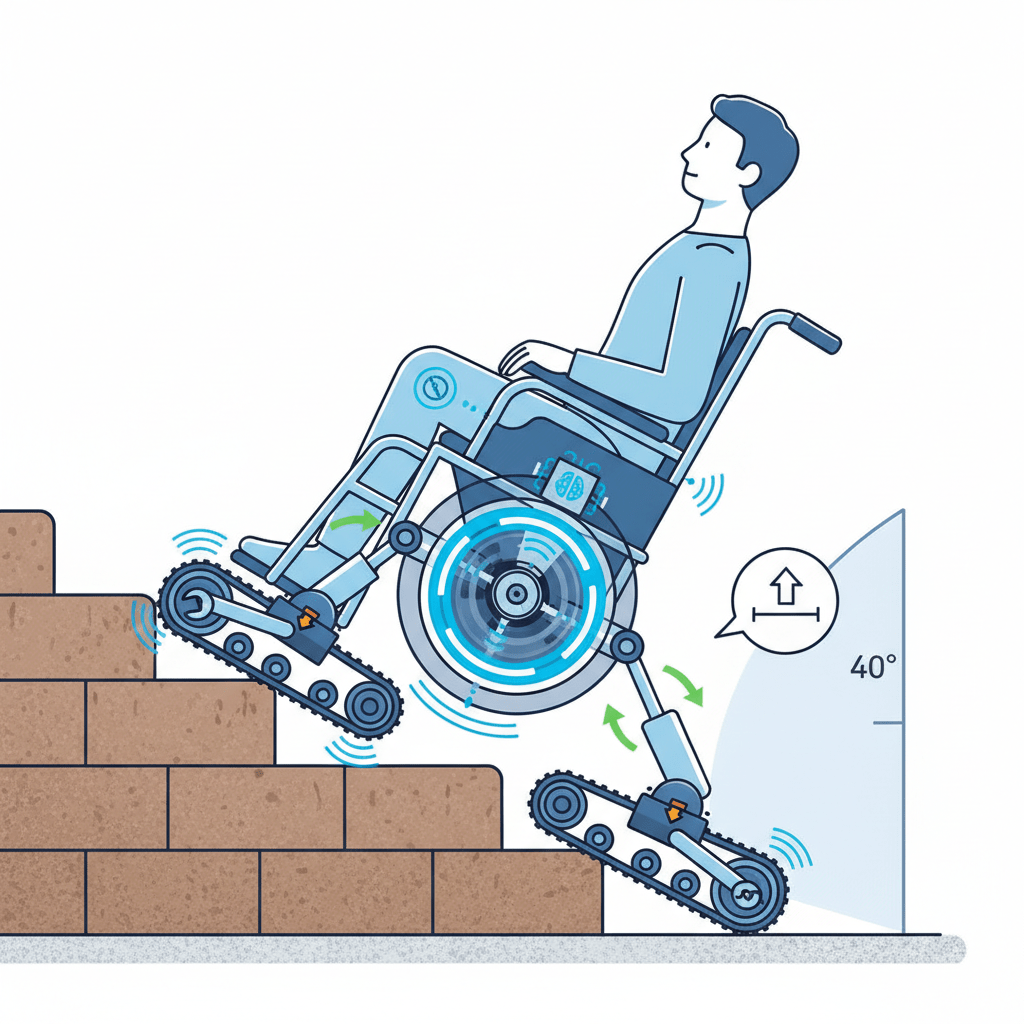

The biggest psychological barrier to using these devices isn’t the height; it’s the tilt. If you were to drive a standard chair up a 40-degree incline, you would be staring at the ceiling, feeling like you were about to flip backward. It induces panic and vertigo.
Smart Balancing Sensors
This is where adaptive mobility technology shines. Modern climbers are equipped with smart balancing sensors, including accelerometers and gyroscopes similar to those found in Segway devices or aerospace technology. These sensors monitor the chair’s angle relative to the horizon hundreds of times per second.
The Hydraulic Tilt System
When the sensors detect a change in pitch (the base tilting up the stairs), they signal a hydraulic tilt system or electric actuators under the seat. The seat actively rotates forward to counteract the stair angle.
The result? The base climbs steeply, but the user remains perfectly upright and perpendicular to the level ground. This gyroscopic stabilization turns what would be a terrifying climb into a calm, seated elevator ride.
05. Powered vs. Manual: Choosing Your Level of Independence
When selecting a climbing solution, the divide often comes down to who is in control: the user or an assistant.
The Powerhouse (Electric)
The fully powered stair climber is the pinnacle of independence. These are typically all-in-one electric wheelchairs equipped with joystick navigation. The user approaches the stairs, engages the mechanism via the control panel, and ascends without any physical help. This allows for true multi-story accessibility without relying on friends or family. If you are looking for a high-end wheelchair series that replaces your daily driver, this is the category for you.
The Team Player (Manual/Assist)
On the other side, we have the manual wheelchair ascender or “crawler.” These are often detachable units that clip onto a standard manual wheelchair. They require a caregiver to steer and balance the unit. While the motor does the heavy lifting, the caregiver is responsible for guidance.
Cost vs. Convenience
The trade-off is stark. Powered, autonomous models are expensive engineering marvels (often $15,000+). Assisted models are significantly more affordable and portable (often fitting in a car trunk) but sacrifice independent mobility.
06. Safety First: Why You Won’t Tumble Down
The engineering of these devices prioritizes safety above all else. Manufacturers know that a failure on a staircase could be catastrophic.
- Electromagnetic Braking System: Every reputable climber features this. It operates on a “dead man’s switch” principle. The moment the user releases the joystick or the caregiver lets go of the handle, the brakes engage physically. The motor locks, and the chair freezes instantly on the stairs. It cannot roll back, even if the power fails.
- Automatic Stair Detection: Using infrared or laser sensors, advanced chairs “see” the edge of the step. If a user accidentally drives toward a drop-off while in “wheel mode,” the sensors cut the power, preventing a fall.
- Anti-Tip Design: To counter gravity, climbers utilize robust anti-tip technology. This usually involves deployable support wheels or tracks that extend far behind the center of gravity, creating a wide, stable footprint that makes flipping backward mechanically impossible under normal operating conditions.
07. The Titans of Tech: Leading Brands and Innovations
The market is filled with innovative players pushing the boundaries of architectural barrier solutions.
- The Sci-Fi Contender: Scewo BRO. Perhaps the most famous, the Scewo BRO features self-balancing two-wheel drive and retractable tracks. It looks like it drove off a movie set, offering seamless transitioning and immense style.
- The Versatile Climber: Caterwil. Caterwil offers robust machines that blend the best of 4WD capability with tracked climbing, focusing on durability and gradient handling.
- The Heavy Lifters: TopChair and Sano. These brands focus on durability. Their crawlers are workhorses in the industry, often used in commercial settings or for heavier users.
- Portable Heroes: Mobile Stairlift. The portable wheelchair lift segment is dominated by devices like the Scalacombi, which can be stored in a car trunk and is perfect for retrofitting access to older buildings without elevators.
08. Stair Lifts vs. Climbing Chairs: What’s the Difference?
It is easy to confuse a stair climbing wheelchair with a stair lift, but they serve different purposes.
Fixed vs. MobileA stair lift is a piece of furniture bolted to your house. It uses a rail system. A climbing wheelchair is a vehicle. The difference lies in independent vertical mobility. A stair lift solves the problem for one staircase. A climbing wheelchair solves the problem for every staircase.
Hydraulic NuanceStair lifts often use rack-and-pinion or hydraulic systems to move along a fixed track. A track-based climbing system on a wheelchair carries its own propulsion.
The VerdictIf you only need to get to your bedroom, a stair lift is fine. If you want to visit a museum, a friend’s house, and a non-ADA compliant restaurant in the same day, you need a climbing wheelchair.
09. Real-World Applications: Beyond the Living Room
The impact of this technology extends far beyond the home foyer.
The Urban Jungle
Historical cities with cobblestones and steps are no longer off-limits. Users can navigate subways that lack elevators or visit heritage sites. A wide seat electric wheelchair ( see examples here ) with climbing capabilities allows for comfort during these long urban excursions.
Emergency Evacuation Aid
This is a critical application. In the event of a fire in a high-rise, elevators are grounded. A climbing chair serves as a vital emergency evacuation aid, allowing individuals to descend fire escapes safely when they would otherwise be trapped.
Outdoor Terrain
Many track-based models offer all-terrain adaptability. The same tracks that grip stairs also excel on gravel, snow, and sand. This opens up parks and nature trails that were previously inaccessible.
Transport
When travelling by van, wheelchair securement tracks (L-tracks) are used to lock the device down. The rugged nature of climbing chairs makes them well-suited for transport, though their weight requires sturdy tie-downs.
10. The Learning Curve: User Experience and Ease of Use
Buying the chair is the easy part; mastering it takes practice.
The “Trust Fall”There is a psychological hurdle. Backing up to a staircase and feeling the chair tilt (before the self-leveling kicks in) feels like a trust fall. It takes several climbs to overcome the instinct to grab the handrail.
ControlsModern interfaces use joystick navigation that is intuitive for anyone who has used a power chair. However, switching modes usually requires a specific sequence of button presses—a safety feature to prevent accidental deployment.
Ride QualityObstacle negotiation on stairs is slow. Most chairs climb at a rate of 10 to 15 steps per minute. It is a deliberate, rhythmic process. Users must be patient. For everyday comfort on flat ground, many users prefer an ergonomic electric wheelchair ( explore options ) that prioritizes seating posture, so high-end climbers often integrate these ergonomic features into their designs.
11. The Reality Check: Drawbacks and Limitations
No technology is perfect, and climbing wheelchairs have specific limitations.
- The Spiral Staircase Enemy: This is the kryptonite of the climbing wheelchair. Stair gradient compatibility is usually limited to straight runs or landings with ample turning space. Tight spiral staircases or wedge-shaped steps often provide insufficient surface area for tracks or star wheels to grip safely.
- The Bulk Factor: Technology is heavy. A fully powered unit is difficult to transport without a specialized van. You cannot simply toss a 250lb robot into the back of a sedan.
- The Price Tag: This freedom comes at a premium. High-end models can cost as much as a compact car (20,000−20,000 – 20,000−40,000). Insurance coverage varies, often leaving the user to foot the bill.
12. Maintenance 101: Keeping the Climb Smooth
To ensure safety, these complex machines require diligence.
- Battery Hygiene: Lithium-ion battery capacity degrades if mistreated. Keeping the batteries charged and not letting them deep-cycle to zero is vital for longevity.
- Track Care: Debris is dangerous. Small stones or mud lodged in the rubberized grip treads can compromise traction. Regular cleaning is non-negotiable to prevent slipping.
- Lubrication: The internal gears of the crawler mechanism need to be kept greased to prevent binding under the immense loads of climbing.
- Professional Checkups: Just like a car, these devices need annual inspections to test the electromagnetic braking system and sensors.
13. Future Trends: Where Do We Go From Here?
The future of adaptive mobility technology is autonomous and intelligent.
AI and Autonomy
We are moving toward chairs that use computer vision and AI to “see” the environment. Instead of the user lining up the chair perfectly perpendicular to the stairs, the AI will handle obstacle negotiation, aligning the tracks automatically and adjusting speed based on the surface material.
The Walking Chair
Toyota and other robotics firms are experimenting with legged locomotion (biomimicry). Imagine a chair that doesn’t roll or crawl, but walks up stairs like a human using four mechanical legs. This could solve the spiral staircase problem entirely.
IoT Integration
Future chairs will communicate with smart home systems (IoT), calling elevators or unlocking doors automatically, and sending diagnostic data to repair technicians before a part even fails.
14. Conclusion: Stepping Into a Barrier-Free World
The stair climbing wheelchair is more than just a collection of motorized caterpillar tracks and gyroscopic stabilization sensors. It is a tool of liberation. By transforming the mechanics of vertical movement, these devices return agency to the user.
While they come with challenges—cost, weight, and maintenance—the ability to navigate a world built for walking is priceless. Whether through a portable manual wheelchair ascender or a futuristic autonomous robot, the technology is here, and it works.
We are stepping into a world where “no access” is no longer an acceptable answer.
