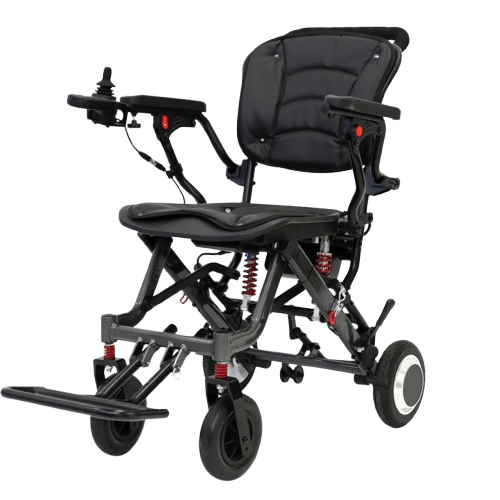

500-7 Portable Electric Wheelchair | 13.5KG Ultra-Light Frame

500-7 Portable Electric Wheelchair | 13.5KG Ultra-Light Frame, 24V Lithium Battery, 360° Joystick Control

Product Overview

The 500-7 Portable Electric Wheelchair is engineered for ease of transport, intuitive handling, and reliable all-day mobility. Designed with B2B buyers in mind—including distributors, clinics, hospitals, rehabilitation centers, and mobility dealers—this model delivers a winning combination of lightweight construction and professional-grade performance.

Its 13.5KG aluminum alloy frame and 15KG total weight with battery make it one of the most travel-friendly portable wheelchairs in the market. Pairing dual 200W brush motors with a 24V lithium battery, the 500-7 offers consistent power, controllable speed, and quiet operation ideal for both indoor and outdoor environments.

Key Features

The 500-7 stands out for its balance of lightweight construction and dependable performance. Dual 200W brush motors ensure smooth acceleration and controlled power suitable for both indoor and outdoor travel. The 360° joystick provides intuitive one-hand control, allowing users to maneuver confidently through narrow spaces, corridors, elevators, and residential areas. PU wheels minimize maintenance requirements, while the foldable design enables quick storage into car trunks, clinic equipment carts, or limited storage rooms, supporting both private users and professional operators.


Specifications

View the specs for the 500-7 Portable Electric Wheelchair below:
Feature Specification
Product Name 500-7 Portable Electric Wheelchair
Frame Material Aluminum Alloy
Frame Weight (Without Battery) 13.5 kg
Total Weight (With 6Ah Battery) 15 kg
Motor Power Dual 200W Brush Motors (200W × 2)
Battery Type 24V 6Ah / 24V 10Ah Lithium Battery Options
Speed Range 1–6 km/h (Programmable)
Climbing Ability ≤ 8°
Front Wheel Size 7-inch PU Wheels
Rear Wheel Size 9-inch PU Wheels
Turning Radius 770 mm
Seat Width 400 mm
Seat Height 530 mm
Backrest Height 430 mm
Load Capacity ≤ 100 kg
Unfolded Size 1100 × 570 × 940 mm
Folded Size 570 × 290 × 740 mm
Brake System Electronic Brake

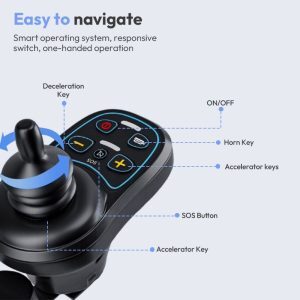

Control Interface 360° Multi-Directional Joystick
Packaging Weight 15 kg
Certification CE, ISO13485 Certified

Why Choose the 500-7 Portable Electric Wheelchair

Designed for the fast-growing lightweight powered mobility category, the 500-7 offers advantages not found in many heavier electric wheelchairs. Its low frame weight allows caregivers, nurses, and family members to easily lift and transport it, reducing physical strain and improving workflow efficiency. For dealers and rental companies, its simple mechanical structure reduces after-sales service demands and enhances long-term reliability. Businesses benefit from a product that is both user-friendly and commercially efficient, with strong demand across aging populations and mobility-impaired communities.

Applications and Use Scenarios

For Hospitals and Clinics

Medical facilities utilize the 500-7 for patient transfers, outpatient mobility, and recovery assistance. Its compact size and tight turning capability allow smooth navigation through medical hallways, treatment rooms, and diagnostic departments, supporting safe and efficient patient flow.

For Rehabilitation Centers

Rehabilitation centers value the 500-7 for its controllable, smooth power output and simple operation. Adjustable speed behavior and responsive joystick control support progressive mobility training, enabling therapists to tailor usage to different stages of recovery.

For Home-Care and Elderly Users

In home-care settings, the lightweight frame and easy folding mechanism make the 500-7 convenient for families and caregivers, while offering seniors a safe, comfortable, and easy-to-learn powered mobility option. It fits well into typical home layouts, community areas, and local shopping environments.

For Mobility Rental and Tourism Services

Rental operators in airports, hotels, shopping malls, and tourist attractions appreciate the 500-7 for its durability, compact storage footprint, and intuitive controls. The design supports frequent user turnover and repeated daily use, making it a practical choice for professional rental fleets and tourism mobility solutions.

Driving Performance and User Experience

The dual 200W motors provide consistent torque and stable power delivery, supporting comfortable driving on indoor floors, pavements, and other common urban surfaces. The 360° joystick ensures responsive handling and precise directional control, giving users confidence when maneuvering in crowded or confined areas. The electronic braking behavior supports secure stopping on gentle slopes or level ground, enhancing user safety in both medical and home-care environments. Together, these features create a smooth, predictable driving experience suited for daily mobility.

Business Value for Distributors

For medical equipment distributors and mobility dealers, the 500-7 represents a strong commercial opportunity. Its ultra-light design differentiates it within the powered wheelchair category, helping partners address growing demand for portable electric wheelchairs. OEM and ODM services are available for branding, packaging customization, and selected feature adjustments, allowing distributors to build a distinctive mobility product line adapted to their local markets. Stable production, consistent quality, and a clear positioning in the lightweight segment make the 500-7 an attractive long-term addition to professional catalogs.

Conclusion

The 500-7 Portable Electric Wheelchair combines ultra-light engineering, dependable motor performance, intuitive control, and compact foldability into a highly marketable mobility solution. It performs effectively across hospitals, rehabilitation centers, home-care environments, and rental services, meeting the expectations of both end users and professional buyers. As part of a modern mobility portfolio, it integrates smoothly with broader product lines such as your
wheelchair series andlightweight electric wheelchair collections.
Its versatility, convenience, and commercial potential make it a standout choice for global distributors and healthcare providers seeking a high-quality portable electric wheelchair.

Frequently Asked Questions

Is the 500-7 suitable for daily indoor use?

Yes, the compact size and responsive 360° joystick make it ideal for daily indoor use in homes, hospitals, and clinics.

Who is the 500-7 designed for?

It is designed for elderly users, rehabilitation patients, and anyone who needs a lightweight, portable electric wheelchair for short to medium distance mobility.

ARY MEDICAL

Get In Touch With Us

Fill out the form for OEM/ODM, bulk orders, or inquiries—we’ll provide the best solution at factory-direct prices!

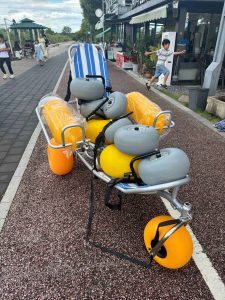

1.Beach Wheelchair
Electric wheelchair

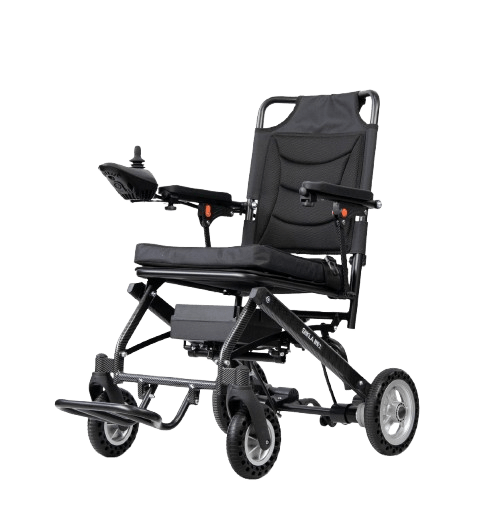

9.8kg electric wheelchair

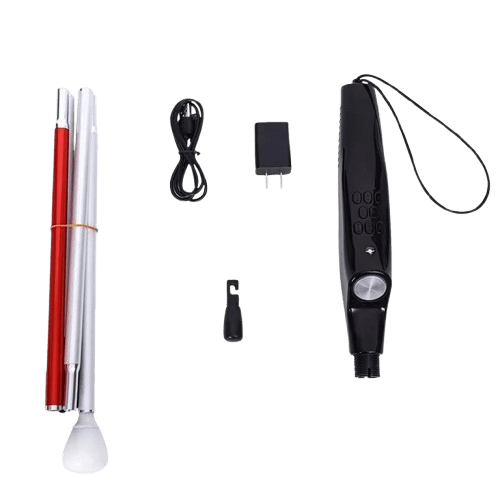

Smart stick
